South Halsted Ceramics Center︎
Manufacturing & Gallery
Chicago, Illinois
Completed at the Illinois Institute of Technology
35,000sf
2012
Lateral Section
Located on two narrow Chicago lots, this facility houses a ceramics manufacturing space as well as gallery and teaching spaces. Industrial lifts connect the manufacturing process between all levels while the angled facade allows tall manufacturing areas to morph into double height manufacturing and studio areas. Due to the site limitations and the nature of ceramics manufacture, different processes occur on individual levels connected by process specific lifts.
Located on two narrow Chicago lots, this facility houses a ceramics manufacturing space as well as gallery and teaching spaces. Industrial lifts connect the manufacturing process between all levels while the angled facade allows tall manufacturing areas to morph into double height manufacturing and studio areas. Due to the site limitations and the nature of ceramics manufacture, different processes occur on individual levels connected by process specific lifts.
Perspective

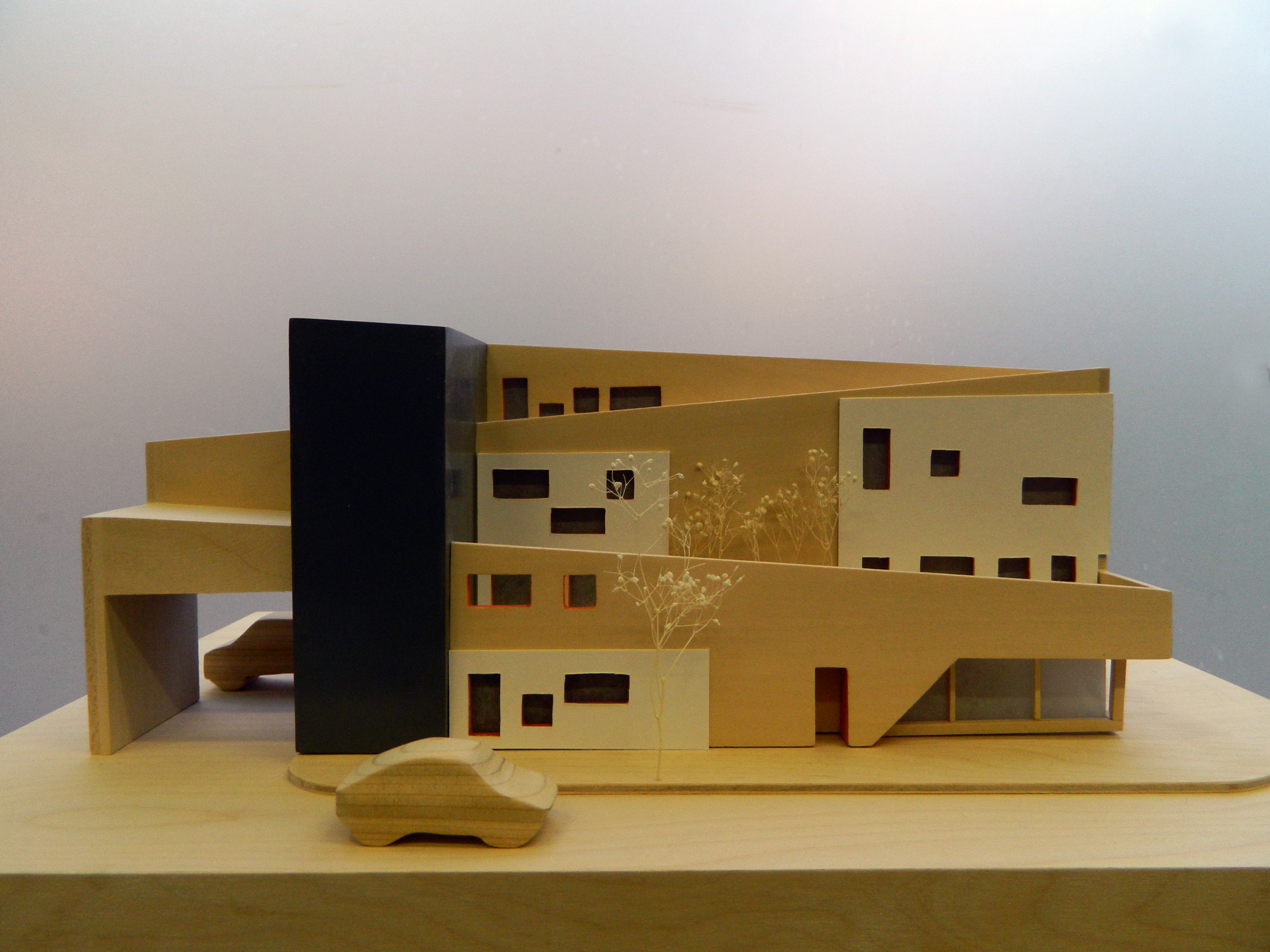

Context Model, Cedar, Basswood, & MDF
Site Analysis
Model, Basswood & Matboard
Context & Relating Materiality
Model, Basswood & Matboard
Model, Basswood & Matboard
Site Plan
Basement & First Level Floor Plans
Third & Fourth Level Floor Pnas
Roof Plan
Elevations

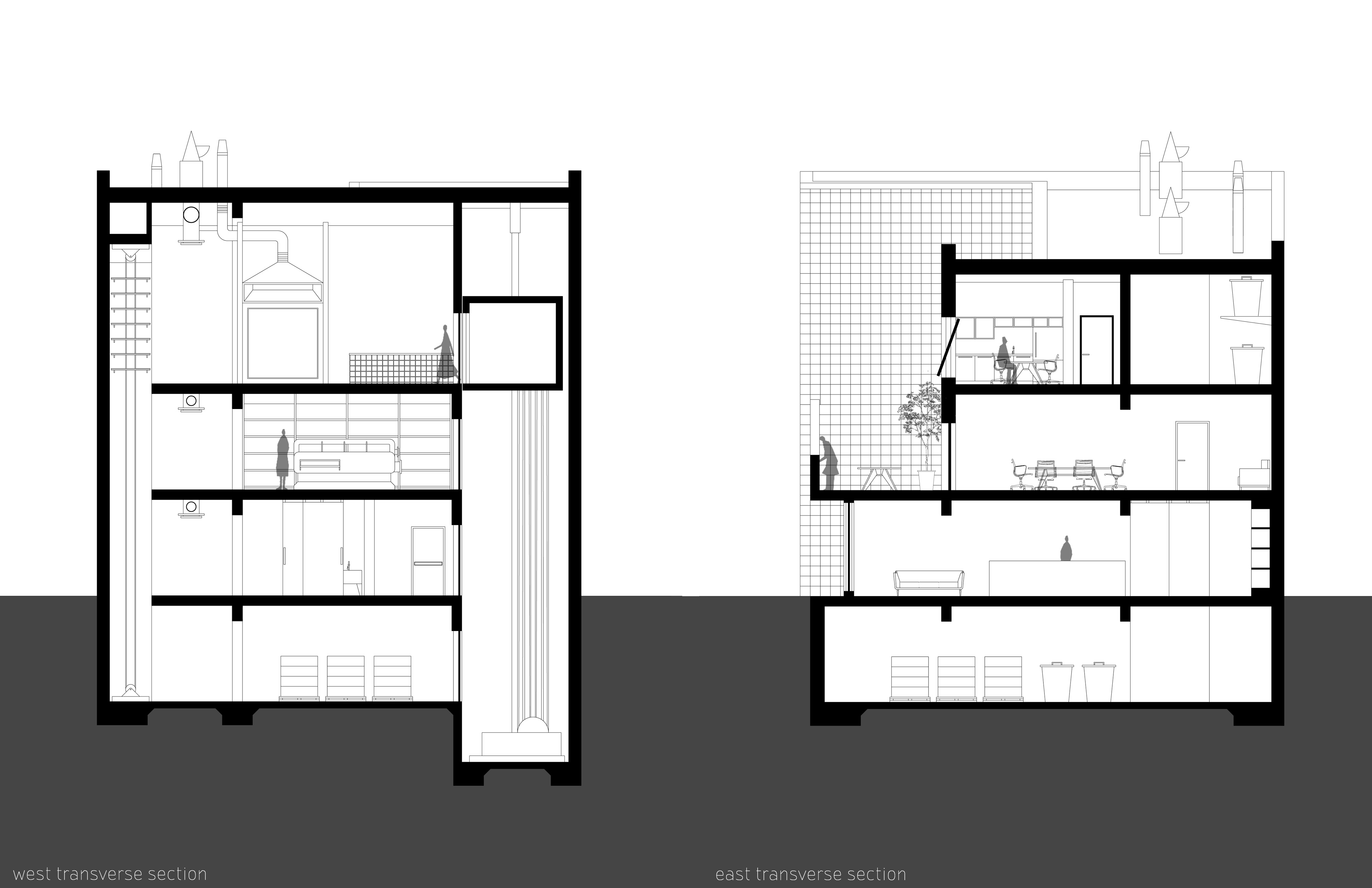

Transverse Sections
Lateral Section 2
Natural Ventilation Diagram
Corner Detail
Parapet Detail

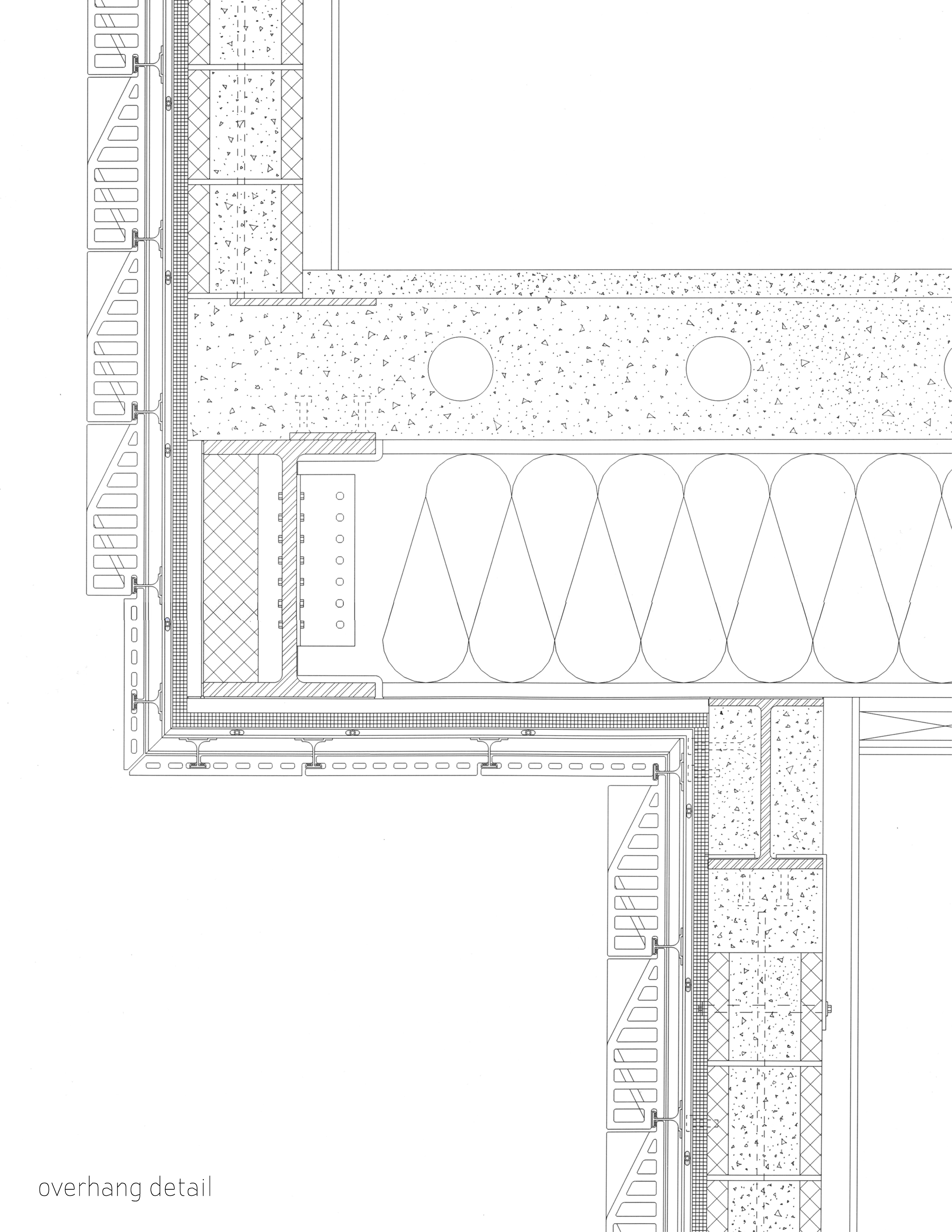

Overhang Detail
Presenting
