McCormick Bird Sanctuary
︎
Bird Blind
Chicago, Illinois
Completed at the Illinois Institute of Technology
2011
Conceptual Entrance Perspective
Located on the coast of Lake Michigan, the green roof of the McCormick Center parking garage provides migratory birds one of the few sanctuaries in the city of Chicago. A bird blind placed on the perimeter of the sanctuary, provides unique bird watching opportunities. Viewing ports form the pattern on the side of the blind and a stairway allows viewers to ascend up to a better vantage point and the height of birds in flight.
Located on the coast of Lake Michigan, the green roof of the McCormick Center parking garage provides migratory birds one of the few sanctuaries in the city of Chicago. A bird blind placed on the perimeter of the sanctuary, provides unique bird watching opportunities. Viewing ports form the pattern on the side of the blind and a stairway allows viewers to ascend up to a better vantage point and the height of birds in flight.
Conceptual Exit Perspective
Massing Perspective

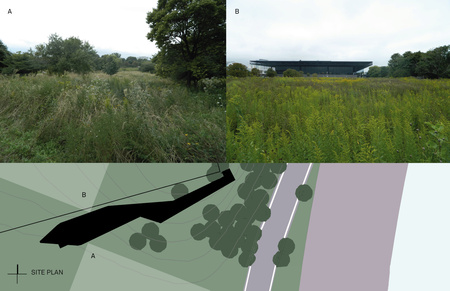

Site Plan & Context

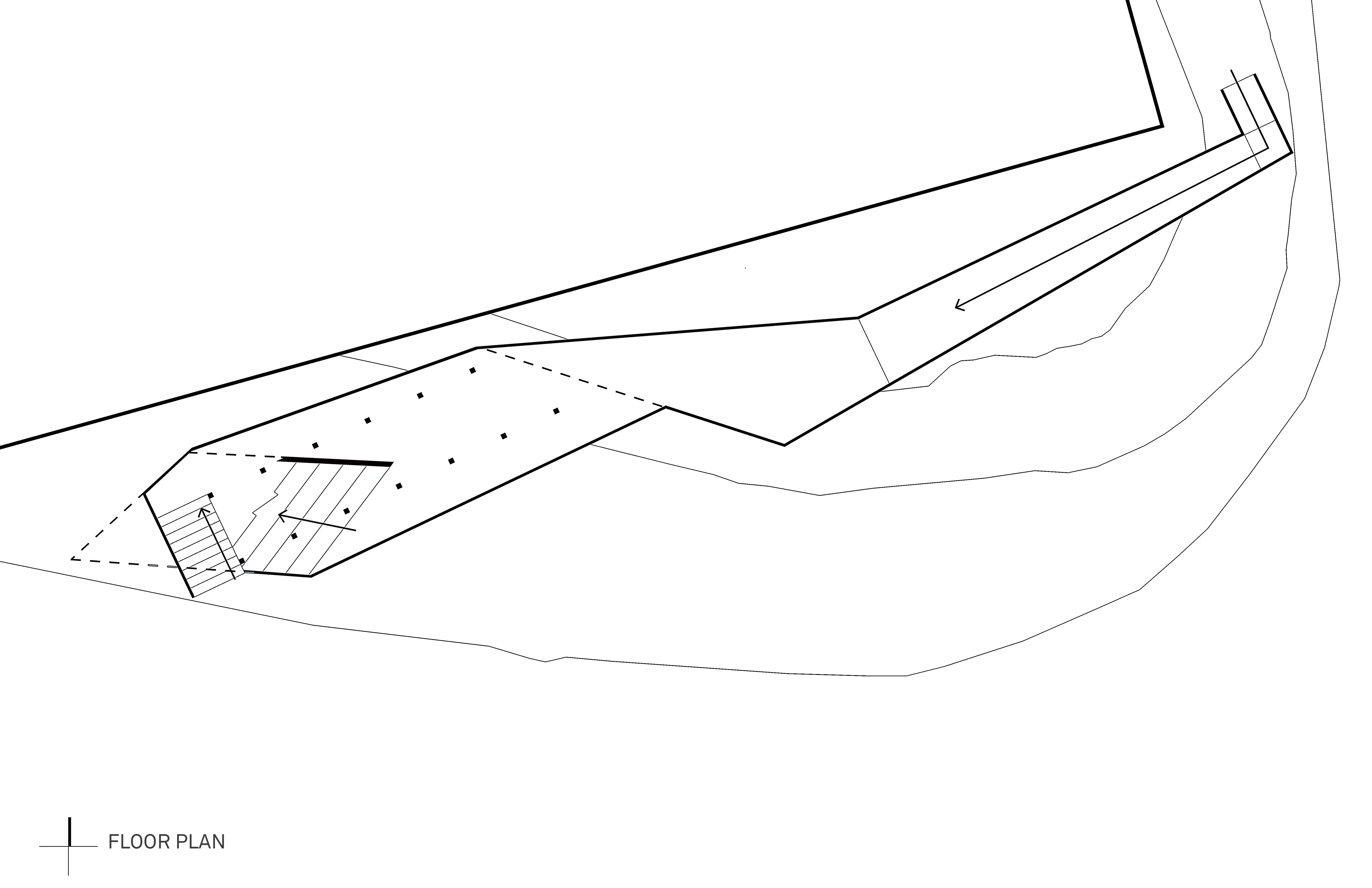

Floor Plan

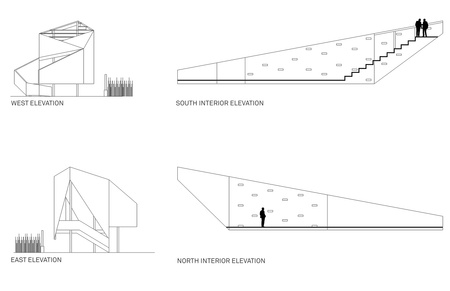

Elevations

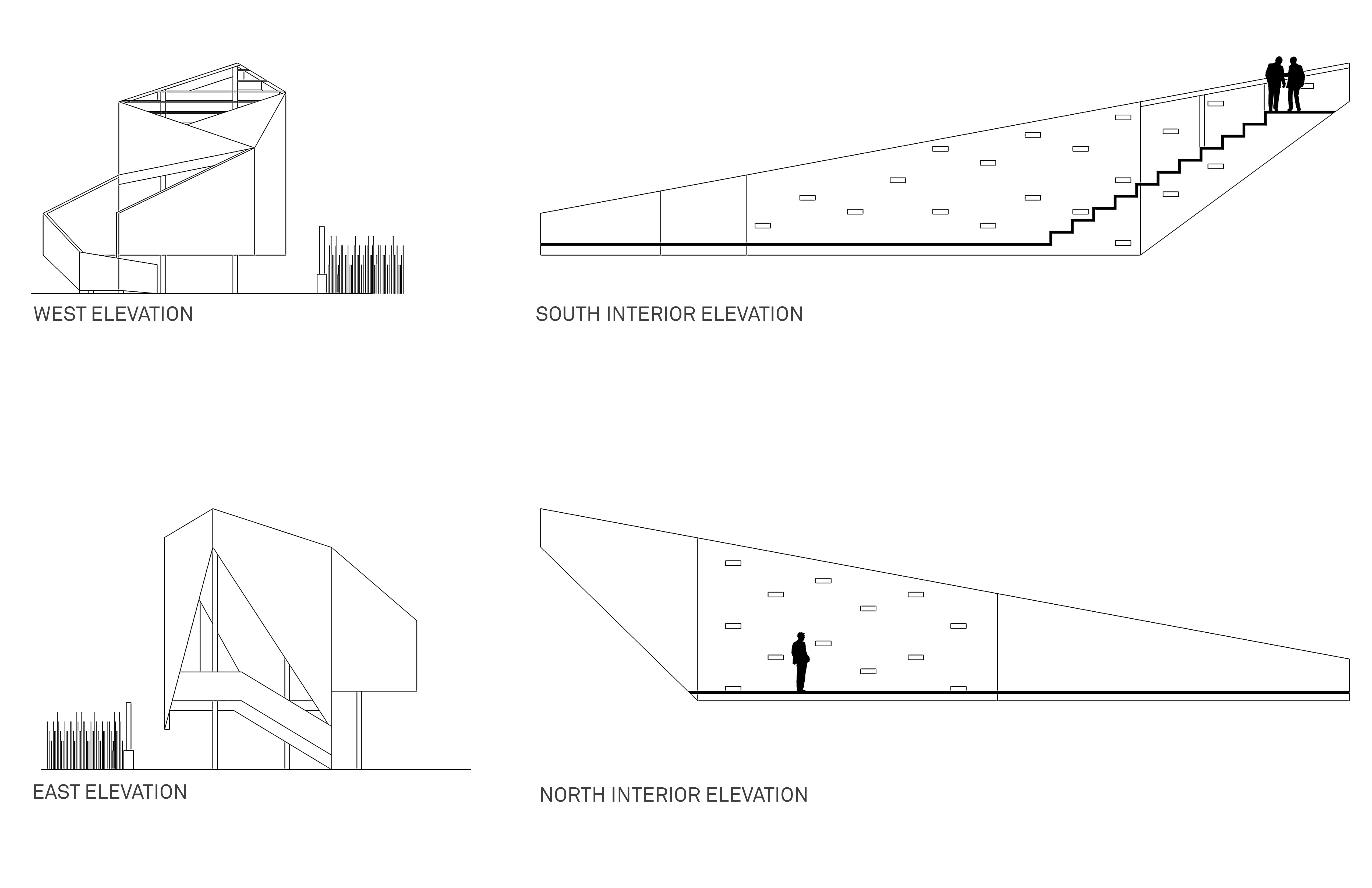

Elevations & Sections

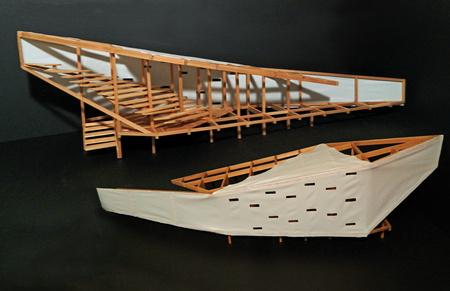

Cedar & Fabric Model
Model Detail

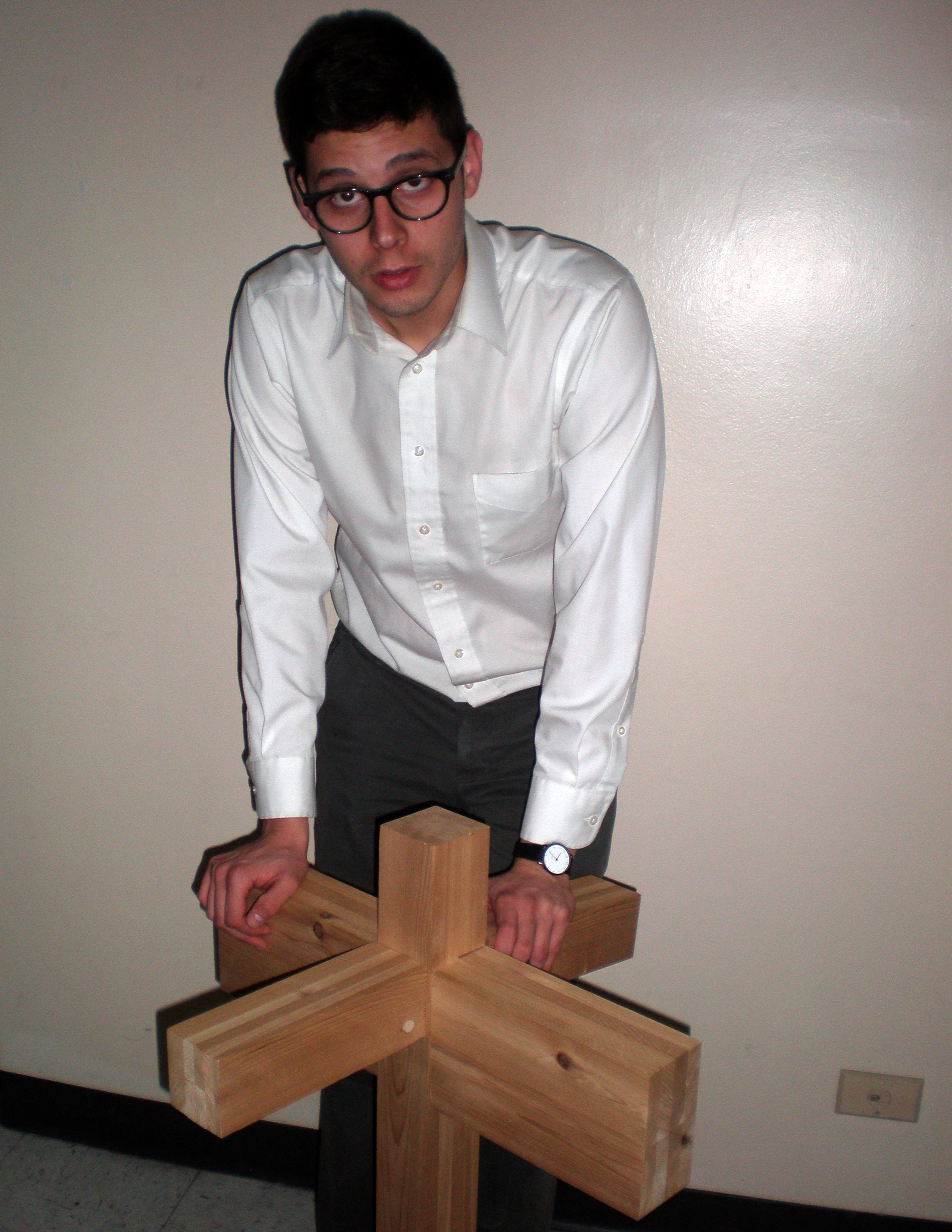

Full Scale Joint Mockup
